Basic DHCP Configuration Step For Router

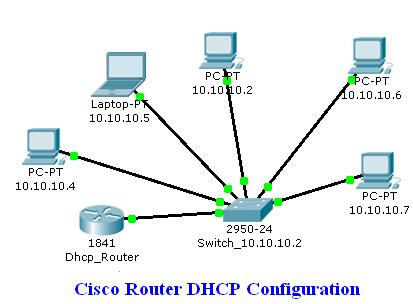

  In Dhcp Router Configuration ,here we take one Cisco Router& we assume that router is initially configured,
 for Dhcp Config first go to router's Enable mode .Then after for Dhcp Service enable in Cisco Router by comman "ip dhcp pool".After Enabled Dhcp Service Assign Dhcp Pool to Router . After that give Network Range what you want to give here we  have given "10.10.10.0 255.255.255.0"After Given a Dhcp network range give a default gate way of router.Then after give 'ip dhcp excluded-address ' for ip manually assign



   Cisco_Router (config)# configure terminal                                           // Go to Router's Enable mode

  Cisco_Router (config)# ip dhcp pool  Ajay                                          // Assigning pool Name

  Cisco_Router (dhcp-config)# network 10.10.10.0 255.255.255.0      // Assigning Dhcp Nw Range

  Cisco_Router (dhcp-config)# default-router 10.10.10.1                     // Assigning Default Router Gateway

  Cisco_Router (dhcp-config)# domain-name Ajay                              //Assigning a Domain

  Cisco_Router (config)# ip dhcp excluded-address 10.10.10.1 10.10.10.3  //Excluding IP
