Error "NTLDR is Missing...... "
Many times we shows an error on pc screen ,when pc start ,
whenever pc shows  NTLDR is Missing  error than fallow the step to resolve error

NTLDR is Missing
Press any key to restart
Boot the pc from Cd Drive if boot priority setted first boot devices is hard drive then change it ,
To boot from CD rom or what ever drive have.
Then restart the Pc.
it will ask you "press any key to boot from cd" then press any key.
Then after wait till it ask you for press r key for Recovery
 Press R for recovery
Select the operation system what you wann repaire , if have installed more than one operating system
Then provide your pc's password if have
Then fallow these command ,
Copy G:\i386\ntldr D:\ "window installed in these drive"
Copy G:\i386\ntdetect.com
Here, G:\ is the cd rom drive   "
Then press "y" of update windows configuration
Exit .
Then again set your boot priority to boot from hard disk.
Than root from your hard disk
Now it works normally

SSID

SSID is a word or name of  WI-FI Network.That is uses to identify the network from many wi-fi network,in more wireless network ,The configuration time Network Admin can set name of SSID, once Network Admin set the name of SSID then it will broadcast to all wireless range or in  AP wifi area.now when  any user or wireless devices can connect with that SSID.wireless access points their are option to disable the SSID  that are automatic broadcast ,to prevent network security.

WPA (WiFi Protected Access)

In wireless networking we can secure our networks using WPA (WiFi Protected Access) /WAP2 algorithms method,.in that method Network admin can set Pre-Shared Key ,Now a what every user must have that Pre-Shared Key.to user wi-fi connectivity ,without Pre-Shared Key user can search the ssid but not able to connect the WI-FI Network.Pre-Shared Key (PSK) authentication should be very  strong passphrase.
also Keep Strong SSID(Service Set IDentifier) Password. To prevent unwanted user & traffic,intrusion give strong password to your SSID. keep WiFi operating system been updated.

how to test internet Broadband speed Online

To Test a speed of Internet
Today in real world people are very close to Internet.In other world a man can't live without a network.in  post i want to show you that, when you are a  using  any Internet service .or want to take any Internet plan then must check .Internet speed ,what they told to you & what is actually getting from your connection.
In Internet broadband  can access the website more faster than dial up.
one day i got an idea that because my Internet speed is very low and service provider told me that you have 2-mbps speed also they a charged me usage of Internet with 2-mbps.i checked my Internet speed by this way.........................

how to test Internet  Broadband speed online  ?
i searched speetest.net  http://www.speedtest.net/  the just click on begin button then it will automatically test the upload & download speed of our Existing connection.

 just go on site then click on begin test it will automatically test the upload & download speed of our Existing connection.

Saturday, 20 August 2011

Dynamics NAT





Network Topologies


Network topologies is that .how Design your Network,it hepls when you are Facing a Problem,

 & helps how to take Action agains to resolve it.

   In Network Some Basic Topology.

 1.Bus Topology

 2.Star Topology

 3.Mesh Topology

 4.Ring Topology





Thursday, 11 August 2011

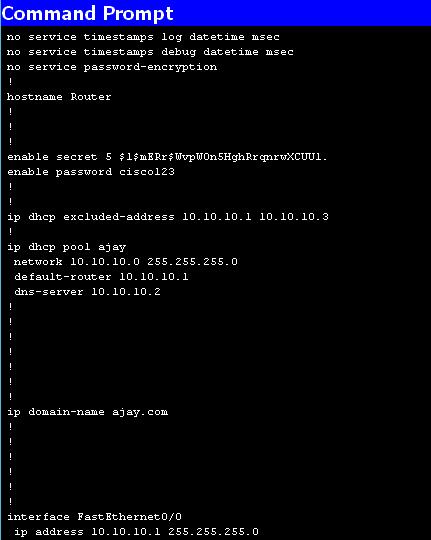

Sh run of- "Cisco Dhcp Router Configuration"

Sh run-Cisco Dhcp Router Configuration


  Cisco_Router (config)# configure terminal                                           // Go to Router's Enable mode

  Cisco_Router (config)# ip dhcp pool  Ajay                                          // Assigning pool Name

  Cisco_Router (dhcp-config)# network 10.10.10.0 255.255.255.0      // Assigning Dhcp Nw Range

  Cisco_Router (dhcp-config)# default-router 10.10.10.1                     // Assigning Default Router Gateway

 Cisco_Router (dhcp-config)# domain-name Ajay                              //Assigning a Domain

  Cisco_Router (config)# ip dhcp excluded-address 10.10.10.1 10.10.10.3  //Excluding IP

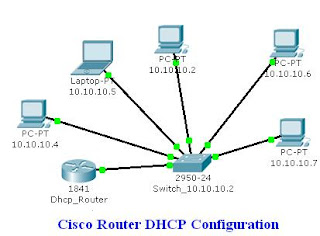

Basic DHCP Configuration Step For Router

  In Dhcp Router Configuration ,here we take one Cisco Router& we assume that router is initially configured,
 for Dhcp Config first go to router's Enable mode .Then after for Dhcp Service enable in Cisco Router by comman "ip dhcp pool".After Enabled Dhcp Service Assign Dhcp Pool to Router . After that give Network Range what you want to give here we  have given "10.10.10.0 255.255.255.0"After Given a Dhcp network range give a default gate way of router.Then after give 'ip dhcp excluded-address ' for ip manually assign





   Cisco_Router (config)# configure terminal                                           // Go to Router's Enable mode
  Cisco_Router (config)# ip dhcp pool  Ajay                                          // Assigning pool Name
  Cisco_Router (dhcp-config)# network 10.10.10.0 255.255.255.0      // Assigning Dhcp Nw Range
  Cisco_Router (dhcp-config)# default-router 10.10.10.1                     // Assigning Default Router Gateway
  Cisco_Router (dhcp-config)# domain-name Ajay                              //Assigning a Domain
  Cisco_Router (config)# ip dhcp excluded-address 10.10.10.1 10.10.10.3  //Excluding IP

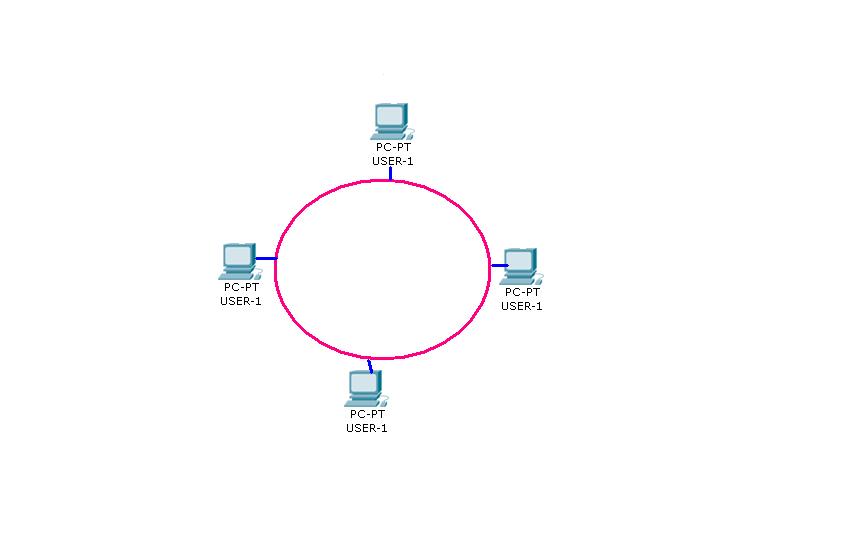

Ring Toplology

  Ring Topology:-In the ring topology, computers are connected throught ethernet cable in Circle
  In Ring Topology Data transfer  around the network by loop in one direction and passing
  through each computer & node .

Mesh Topology:-




Mesh Topology:-In a mesh topology,Each Node & Computer are Connected Many Way's ,So if one is Breck ,then it will send Data One another Way.shown in Figure,it is Very Effective topology on Big Network & Wide Area Network,But is Costly than Other One.



Star Topology






Star Topology:-The Star  topology is Better than Bus Topology is show in offices and home

  networks that are connected through the Single Switch.In star topology is that if one computer Or node fail on the star topology,  then  other node & computer is not affectd. it' continue connected.

  only failed computer Can't Communicate data with the network.


Wednesday, 10 August 2011

Bus Topology:-



Bus Topology:-Bus topology is Lenialr, all workstations are connect directly One By one,Data Travel one by one node.

Linksys PAP2 is ATA-Analog Telephone Adaptor




Linksys PAP2 is ATA-Analog Telephone Adaptor




Linksys PAP2-NA VoIP Adapter

Linksys PAP2-NA VoIP AdapterPorts: 2 FXS + 1 Ethernet



Linksysy PAP2 For creating connection up to two analog telephones or VoIP carrier.

The physical connections on the device are two RJ11 jacks for the telephones and one RJ45 jack for ethernet. The ethernet connection is 10 Mbit/s, half-duplex. The device is configured through a web interface. Each analog telephone is presented as a distinct SIP user.



Linksys PAP2 Devices Support:-



 two voice ports RJ-11 for analog phones or fax machines with two independent telephone numbers

 RJ-45 port for 10Base-T Ethernet connection

 supports Dynamic Host Configuration Protocol

 supports Session Initiation Protocol (SIP)

 supports multiple voice compression G.711, G.726, G.729, and G.723.1

 Web-based configuration through a built-in web server

 Telephone key pad configuration via voice prompts

 Supports DTMF tone detection and generation

 Supports FSK Caller ID, DTMF Caller ID and FSK VMWI

 Support echo cancellation and Voice Activity Detection

 Password protected access and configuration

S upports auto-provisioning with remote firmware upgrade

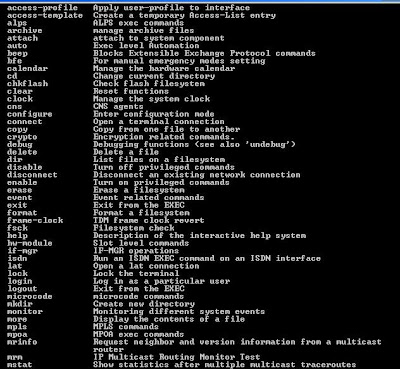

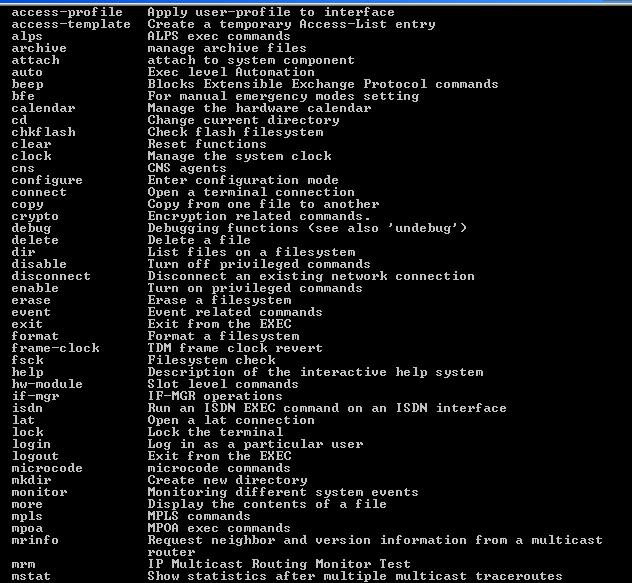

Execution Mode Commands-Cisco



Router Diffrent modes

Router Diffrent modes-ExeCution  mode


"#"-Symbol indiacated that tha executong mode,At this mode all Show command run.

Router#

show startup-config

show running-config

copy run start

copy start run

erase startup-config - For Erasing Non Volatile RAm

reload -For Restart Router router

setup - starts initial  dialog

Passwords For Sequirity perpouse

enable secret Sequirity perpouse

enable secret  -To enter Enable Configuration





What is Telnet?

Telnet is network Terminal ,with use of telnet terminal we can see our router's intreface status,we can telnet from any of the ip that has been given to it's interface,We can Change,Edit orremove Router and update Router's Configuration.



Router Diffrent Enable  mode:-

Router(conf-t)#-Symbol indiacated that tha executong mode,At this mode all Show command run.

VTY - virtual terminal password

Telnet access

setup in setup mode

line vty 0 5 - specifies 0 - 5 are telnet sessions

Router(conf-t)#line vty 0 5

Router(conf-t)#password XXXXXx

Router(conf-t)#login

Router(conf-t)#^z


IF No login means no password over telnet


Auxilliary password -for Auxilury modem access.

Router(conf-t)#line aux 0

Router(conf-t)#password xxxxx

Router(conf-t)#login

Router(conf-t)#^z

Console password-used with direct access to console port

Router(conf-t)#line consol 0

Router(conf-t)#password Cisco

Router(conf-t)#login

Router(conf-t)#^z

Monday, 8 August 2011

Telnet -Terms



Telnet is network Terminal ,with use of telnet terminal we can see our router's intreface status,we can telnet from any of the ip that has been given to it's interface,We can Change,Edit orremove Router and update Router's Configuration.

 Steps of Creating Telnet:




 Steps1:Connect the Pc to router with console cable on consol port of Router.

 Steps2:Open Hyperterminal in Pc.and Set Default Setting of Hyperterminal bit rate,Hardware,

 Steps3:one'c you enter in a Router,then go to the Configuration mode by command "config-t"

 Steps4:Now in Configuration Terminal give command for "line Vty 0 4" for Creating Telnet

 Steps5:Give command for Telnet password " Password Cisco"

 Steps6:Give command "login" for login.

 Steps7:Give Enable Password For "Enable Password " Enable Configuration

EIGRP-Routing











For EIGRP Configuration We take two router Serise Cisco 2800.

and We Assume that the both router are initially configured.

now login in Router with Hyperterminal from PC.

now Create Consol Terminal with command

  Router_1(Conf-t)#Line consol 0

  Router_1(Conf-t)#Password Cisco

  Router_1(Conf-t)#Login

Now Create  Telnet for Virtual Enter in Router Or remoter logging.woth command

   Router_1(Conf-t)# Line vty 0 4

   Router_1(Conf-t)#Password Cisco

   Router_1(Conf-t)#Login



Now Go to the Ethernet port with command

    Router_1(Conf-t)#int Fa0/0

Give ip address with command

    Router_1(Conf-t)#ip Address "10.10.11.1 255.255.255.0 "

For Interface Up give command


  Router_1(Conf-t)#no shut

Now Go to the SErial port with command

    Router_1(Conf-t)#Serial 0/0

Give ip address with command

    Router_1(Conf-t)#ip Address "10.10.12.1 255.255.255.0 "

For Interface Up give command


  Router_1(Conf-t)#no shut

  Router_1(Conf-t)#Exit // Exit from interface

Ok,Now it's time to Enable  Protocol.

    Router_1(Conf-t)#Router eigrp 10

    Router_1(Conf-t)#network 10.10.11.1

    Router_1(Conf-t)#network 10.10.12.1

  Then save Configuration with command 'wr' Or Copy Runing_config to star_config


Do same Configuration in Router_2,But Give ip to these Seriese

  Router_2 Fast ethernet Ip:10.10.13.1/24

  Router_2 Fast Serial Ip:10.10.12.2/24


 Ok,Now it's time to Enable RIP Protocol.

   Router_1(Conf-t)#Router eigrp 10

   Router_1(Conf-t)#network 10.10.13.1

   Router_1(Conf-t)#network 10.10.12.1

RIP Routing


Router Information Protocol









When We Want to Connect more than one lan or create Wan Network.so we want a router which can route our traffic(Packets) in whole network.routing is that how traffice will route across the Network
For Rip Configuration We take two router Serise Cisco 2800.
and We Assume that the both router are initially configured.
now login in Router with Hyperterminal from PC.
now Create Consol Terminal with command
  Router_1(Conf-t)#Line consol 0
  Router_1(Conf-t)#Password Cisco
  Router_1(Conf-t)#Login
Now Create  Telnet for Virtual Enter in Router Or remoter logging.woth command
   Router_1(Conf-t)# Line vty 0 4
   Router_1(Conf-t)#Password Cisco
   Router_1(Conf-t)#Login

Now Go to the Ethernet port with command
    Router_1(Conf-t)#int Fa0/0
Give ip address with command
    Router_1(Conf-t)#ip Address "10.10.11.1 255.255.255.0 "
For Interface Up give command

  Router_1(Conf-t)#no shut
Now Go to the SErial port with command
    Router_1(Conf-t)#Serial 0/0
Give ip address with command
    Router_1(Conf-t)#ip Address "10.10.12.1 255.255.255.0 "
For Interface Up give command

  Router_1(Conf-t)#no shut
  Router_1(Conf-t)#Exit // Exit from interface
Ok,Now it's time to Enable RIP Protocol.
    Router_1(Conf-t)#Router rip
    Router_1(Conf-t)#network 10.10.11.1
    Router_1(Conf-t)#network 10.10.12.1

  Then save Configuration with command 'wr' Or Copy Runing_config to star_config

Do same Configuration in Router_2,But Give ip to these Seriese
  Router_2 Fast ethernet Ip:10.10.13.1/24
  Router_2 Fast Serial Ip:10.10.12.2/24

 Ok,Now it's time to Enable RIP Protocol.
   Router_1(Conf-t)#Router rip
   Router_1(Conf-t)#network 10.10.13.1
   Router_1(Conf-t)#network 10.10.12.1

Saturday, 6 August 2011

Static NAT

What is NAT?

NAT is Natwork Addres Translation. means suppose We have  Private Network and we are Connected throught Network both Intranet and Internet ,then proble is that,other people will see ,
and may be try to Enter in private network.so to avoid Intrustion.we have to Put NAT in beetween Public and Prive Network.so with use of NAT We can Translate our Private Network  Address To General Network Address.



 Types Of Network Address Translation
Static
Dynamics

RIP Routing

RIP Routings
In Rip routing we take one router as hostname mehsana and router 2 as hostname Gandhinagar.
 Host Mehsana  is set  IP address of 10.11.12.1 /24 and a default gateway of 10.11.12.1. and Host Gandhinagar is set with an IP address of  10.11.12.2 /24 and a default gateway of 10.11.12.2. The Ethernet interface of  Router Mehsana should use an IP address of 10.11.13.1 /24 and the Serial interface of Router Mehsana should use an IP address of 10.11.12.1 /24. The Ethernet interface of Ghandhinagar should use an IP address of 192.168.100.1 /24 and the Serial interface of Router2 should use an IP address of 10.11.12.14 /24. Your  DCE cable connected to Router Mehsana. The serial link should have speed of 64K. Configure the routers with RIP V1

 hostname router1
!
interface Ethernet0/0
 ip address 10.11.13.1 255.255.255.0
 no shut
!
interface Serial0/0
 ip address 10.11.12.1  255.255.255.0
clock rate 64000
 no shut
!
router rip
network 192.168.1.0
network 192.168.101.0
R2:
hostname router2
!
interface Ethernet0/0
 ip address 192.168.100.1 255.255.255.0
 no shut
!
interface Serial0/0
 ip address 192.168.1.2 255.255.255.0
 no shut
!
router rip
network 192.168.1.0
network 192.168.100.0
Host A:
Ipconfig /IP 192.168.101.2 255.255.255.0
Ipconfig /DG 192.168.101.1
Host B:
Ipconfig /IP 192.168.100.2 255.255.255.0
Ipconfig /DG 192.168.100.1

Friday, 5 August 2011

Router Serial Interface


To setup a serial Port connection. For Serial Port connections are configured It Require  more Information than simple ethernet ,Giga ethernet  connections . For Setting up Serial it require clock rate command. The clock rate command Create a common rate at which the sending and receiving routers will send data to  Gandhinagar Serial 0. To verify your connection is established or not use the command show cdp neighbors or sh interface brief.

Mehsana: hostname router1
! interface Serial0/0
clock rate 64000
 no shut
Gandhinagar: hostname router2
 ! interface Serial0
 no shut

Thursday, 4 August 2011

Point to Point

Point to Point
Industry Standard Protocol.
Use Network Control Protocol Field in the Data link header to identify the Network layer protocol
Allow s authentication and multilink connection & can be run asynchronous & synchronous link.

LAPB:-Link Access Procedure, Balanced


LAPB:-Link Access Procedure, Balanced
 Connection Oriented Protocol At the Data link layer For use with x.25.
It can also be used as a simple data link transport.
Labp has a tremendous amount of overhead because its strict timeout & windowing Technology.
It is for error proves as compared to lower overhead HDLC.

ISDN

It transmits voice & Data Over Existing phone lines. Good choise as a backup links.
Higher speed Connection Than Dial –up Link it’s Costly link than others.

Frame Relay:



Data link & Physical Layer Specification that provides higher performance.
Frame relay is more cost effective than point to point links & can typically run at speed of 64 kbps to 1.55mbps.

Dynamics –Bandwidth allocation & Congestion control.
Frame relay transmit data with less overhead.


Wan Connection Type’s


1st’ Dedicated
Synchronies  Serial

2.Circuit Switched

3.Packet-Switched
Frame Relay
X.25

Term

1 CPE Customer Premises Equipments
2 Local loop: connects the demure to the closest
Switching office called a central office
3.Central Office:-Point of Presence connectivity Customer to The Provider’s Switching Network.
4.Toll Network Trunk Lines Inside a Wan Provider Network It’s a Collection Of switches & Facilities.

Wan Protocol


WAN Protocol
HDLC (High level Data –link Control Protocol)
PPP Point to point Protocol
ISDN( Integrated  Service Digital Network)

RIP

Routing information protocol

RIP-Routing information protocot
its matric is hope count.
It is support 15 host and 16 is unreachable.
It is firt localy update routing table then send update neighbouring router so its convergence slow compare with eigrp,ospf.
It two type RIPv1 one support classfull and RIPv2 classless

Wednesday, 3 August 2011

NETWORK PORT

Port Number   Description
1                    TCP Port Service

7                     ECHO
18                   Message Send Protocol
20                  FTP -- Data
21                  FTP -- Control
22                  SSH Remote Login Protocol
23                  Telnet
25                  Simple Mail Transfer Protocol
29                  MSG ICP
37                  Time
42                  Host Name Server
43                  WhoIs
49                  Login Host Protocol
53                  Domain Name System
69                  Trivial File Transfer Protocol
70                 Gopher Services
79                 Finger
80                 HTTP
103               X.400 Standard

109               POP2
110               POP3
115              Simple File Transfer Protocol
118              SQL Services
119              Newsgroup (NNTP)
137              NetBIOS Name Service
139              NetBIOS Datagram Service
143              Interim Mail Access Protocol
150              NetBIOS Session Service
156              SQL Server
161              SNMP
179              Border Gateway Protocol
190             Gateway Access Control Protocol
194             Internet Relay Chat (IRC)
197             Directory Location Service
389             Lightweight Directory Access Protocol
396             Novell Netware over IP
443             HTTPS
444             Simple Network Paging Protocol

Tuesday, 2 August 2011

Point to Point Wireless link

For Point to Point wireless link Establishment ,firs  measure the Distance between two location,how one office to another office or source to Destination.because it is very importance.then we have to Test the Device rested at how much height and is there any Disturbance or nor not because wireless network need Free area environment.in wireless devices so many company's available as per requirement we can choose product.




Wireless Networking/Wi-fI

Today ,Wireless Broadband or wi-fi Network user are increased very Fast because today people use laptops in place of Desktops,or people also uses 3G services it's what it's one type of wireless technologies.or some place where Cable network is not possible, This place wireless Network is is very good.wire less technology work on Band 2.4 ghz & 5.8 Ghz Band.By Default all the wireless devices support this both band.

  Point to Point wireless link
  Point to multipoint link
  check point
  hotpot
  Area WiFi

Many of Devices Available in markets today. Ruckus Product,Tranzo,Airmax ,Cisco ,Linksys & Many more..

Password Recovery cisco2600

IF you are Unable to Enter in Router via telnet, or lost the password in Cisco 2600 & 2800, the Cisco has given advantage to recover the password. Now we have to bypass the start up config & Boot from the flash memory then we have to change password.

 To recover router password follow the steps:-

Step 1. Connect Router with pc throught console port & console cable.
Step 2.set up console setting.
Step 3.Reboot router
Step 4.press break key on keyboard within 60 seconds of power up in order to put router in rom mode. To bypasses the startup configuration where the passwords are stored

 Step 5. Type confreg 0x2142 at the rommon 1> prompt in order to boot from Flash.
Step 6. Type Reset at rommon 2> prompt & router reboot
Step 7 Type Enable at router >prompt
Step 8   now u can see router# mode
Step 8 then copy starts up config to running config
Step 8 then go to configure terminal
Step 9 u redirect the router (conf-t) # then type Enable Secret Cisco123
Step 3 type confreg 0x2102
Step10. then wr running config to start up config
Example of Password Recovery Procedure
Router>enable
Password:
Password:
Password:
% Bad secrets
Router>show version
Cisco Internetwork Operating System Software
IOS (tm) C2600 Software (C2600-IS-M), Version 12.0(7)T, RELEASE SOFTWARE (fc2)
Copyright (c) 1986-1999 by cisco Systems, Inc.
Compiled Tue 07-Dec-99 02:21 by phanguye
Image text-base: 0x80008088, data-base: 0x80C524F8
ROM: System Bootstrap, Version 11.3(2)XA4, RELEASE SOFTWARE (fc1)
Router uptime is 3 minutes
System returned to ROM by abort at PC 0x802D0B60
System image file is "flash:c2600-is-mz.120-7.T"
cisco 2611 (MPC860) processor (revision 0x202) with 26624K/6144K bytes of memory.
Processor board ID JAB031202NK (3878188963)
M860 processor: part number 0, mask 49
Bridging software.
X.25 software, Version 3.0.0.
Basic Rate ISDN software, Version 1.1.
2 Ethernet/IEEE 802.3 interface(s)
2 Serial(sync/async) network interface(s)
1 ISDN Basic Rate interface(s)
32K bytes of non-volatile configuration memory.
8192K bytes of processor board System flash partition 1 (Read/Write)
8192K bytes of processor board System flash partition 2 (Read/Write)
Configuration register is 0x2102
Router>
*** System received an abort due to Break Key ***
signal= 0x3, code= 0x500, context= 0x813ac158
PC = 0x802d0b60, Vector = 0x500, SP = 0x80006030
rommon 1 > confreg 0x2142
You must reset or power cycle for new config to take effect
rommon 2 > reset
System Bootstrap, Version 11.3(2)XA4, RELEASE SOFTWARE (fc1)
Copyright (c) 1999 by cisco Systems, Inc.
TAC:Home:SW:IOS:Specials for info
C2600 platform with 32768 Kbytes of main memory
program load complete, entry point: 0x80008000, size: 0x6fdb4c
Self decompressing the image : ###############################
##############################################################
##############################################################
##############################################################
############################### [OK]
 Restricted Rights Legend
Use, duplication, or disclosure by the Government is
subject to restrictions as set forth in subparagraph
(c) of the Commercial Computer Software - Restricted
Rights clause at FAR sec. 52.227-19 and subparagraph
(c) (1) (ii) of the Rights in Technical Data and Computer
Software clause at DFARS sec. 252.227-7013.
 cisco Systems, Inc.

170 West Tasman Drive
 San Jose, California 95134-1706
Cisco Internetwork Operating System Software
IOS (tm) C2600 Software (C2600-IS-M), Version 12.0(7)T, RELEASE SOFTWARE (fc2)
Copyright (c) 1986-1999 by cisco Systems, Inc.
Compiled Tue 07-Dec-99 02:21 by phanguye
Image text-base: 0x80008088, data-base: 0x80C524F8
cisco 2611 (MPC860) processor (revision 0x202) with 26624K/6144K bytes of memory.
Processor board ID JAB031202NK (3878188963)
M860 processor: part number 0, mask 49
Bridging software.
X.25 software, Version 3.0.0.
Basic Rate ISDN software, Version 1.1.
2 Ethernet/IEEE 802.3 interface(s)
2 Serial(sync/async) network interface(s)
1 ISDN Basic Rate interface(s)
32K bytes of non-volatile configuration memory.
8192K bytes of processor board System flash partition 1 (Read/Write)
8192K bytes of processor board System flash partition 2 (Read/Write)
 --- System Configuration Dialog ---
Would you like to enter the initial configuration dialog? [yes/no]: n
Press RETURN to get started!
00:00:19: %LINK-3-UPDOWN: Interface BRI0/0, changed state to up
00:00:19: %LINK-3-UPDOWN: Interface Ethernet0/0, changed state to up
00:00:19: %LINK-3-UPDOWN: Interface Ethernet0/1, changed state to up
00:00:19: %LINK-3-UPDOWN: Interface Serial0/0, changed state to down
00:00:19: %LINK-3-UPDOWN: Interface Serial0/1, changed state to down
00:00:20: %LINEPROTO-5-UPDOWN: Line protocol on Interface BRI0/0,
changed state to down
00:00:20: %LINEPROTO-5-UPDOWN: Line protocol on Interface Ethernet0/0,
 changed state to up
Router>
00:00:20: %LINEPROTO-5-UPDOWN: Line protocol on Interface Ethernet0/1,
changed state to up
00:00:20: %LINEPROTO-5-UPDOWN: Line protocol on Interface Serial0/0,
changed state to down
00:00:20: %LINEPROTO-5-UPDOWN: Line protocol on Interface Serial0/1,
changed state to down
00:00:50: %SYS-5-RESTART: System restarted --
Cisco Internetwork Operating System Software
IOS (tm) C2600 Software (C2600-IS-M), Version 12.0(7)T, RELEASE SOFTWARE (fc2)
Copyright (c) 1986-1999 by cisco Systems, Inc.
Compiled Tue 07-Dec-99 02:21 by phanguye
00:00:50: %LINK-5-CHANGED: Interface BRI0/0,
changed state to administratively down
00:00:52: %LINK-5-CHANGED: Interface Ethernet0/0,
changed state to administratively down
00:00:52: %LINK-5-CHANGED: Interface Serial0/0,
changed state to administratively down
00:00:52: %LINK-5-CHANGED: Interface Ethernet0/1,
changed state to administratively down
00:00:52: %LINK-5-CHANGED: Interface Serial0/1,
changed state to administratively down
00:00:53: %LINEPROTO-5-UPDOWN: Line protocol on Interface Ethernet0/0,
changed state to down
00:00:53: %LINEPROTO-5-UPDOWN: Line protocol on Interface Ethernet0/1,
changed state to down
Router>
Router>enable
Router#copy startup-config running-config
Destination filename [running-config]?
1324 bytes copied in 2.35 secs (662 bytes/sec)
Router#
00:01:24: %LINEPROTO-5-UPDOWN: Line protocol on Interface BRI0/0:1,
changed state to down
00:01:24: %LINEPROTO-5-UPDOWN: Line protocol on Interface BRI0/0:2,
changed state to down
Router#configure terminal
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#enable secret < password >
Router(config)#^Z
00:01:54: %SYS-5-CONFIG_I: Configured from console by console
Router#configure terminal
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#interface Ethernet0/0
Router(config-if)#no shutdown
Router(config-if)#
00:02:14: %LINK-3-UPDOWN: Interface Ethernet0/0, changed state to up
00:02:15: %LINEPROTO-5-UPDOWN: Line protocol on Interface Ethernet0/0,
changed state to up
Router(config-if)#interface BRI0/0
Router(config-if)#no shutdown
Router(config-if)#
00:02:26: %LINK-3-UPDOWN: Interface BRI0/0:1, changed state to down
00:02:26: %LINK-3-UPDOWN: Interface BRI0/0:2, changed state to down
00:02:26: %LINK-3-UPDOWN: Interface BRI0/0, changed state to up
00:02:115964116991: %ISDN-6-LAYER2UP: Layer 2 for Interface BR0/0,
TEI 68 changed to up
Router(config-if)#^Z
Router#
00:02:35: %SYS-5-CONFIG_I: Configured from console by console
Router#copy running-config startup-config
Destination filename [startup-config]?
Building configuration...
[OK]
Router#show version
Cisco Internetwork Operating System Software
IOS (tm) C2600 Software (C2600-IS-M), Version 12.0(7)T, RELEASE SOFTWARE (fc2)
Copyright (c) 1986-1999 by cisco Systems, Inc.
Compiled Tue 07-Dec-99 02:21 by phanguye
Image text-base: 0x80008088, data-base: 0x80C524F8
ROM: System Bootstrap, Version 11.3(2)XA4, RELEASE SOFTWARE (fc1)
Router uptime is 3 minutes
System returned to ROM by abort at PC 0x802D0B60
System image file is "flash:c2600-is-mz.120-7.T"
cisco 2611 (MPC860) processor (revision 0x202)
with 26624K/6144K bytes of memory.
Processor board ID JAB031202NK (3878188963)
M860 processor: part number 0, mask 49
Bridging software.
X.25 software, Version 3.0.0.
Basic Rate ISDN software, Version 1.1.
2 Ethernet/IEEE 802.3 interface(s)
2 Serial(sync/async) network interface(s)
1 ISDN Basic Rate interface(s)
32K bytes of non-volatile configuration memory.
8192K bytes of processor board System flash partition 1 (Read/Write)
8192K bytes of processor board System flash partition 2 (Read/Write)
Configuration register is 0x2142
Router#configure terminal
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#config-register 0x2102
Router(config)#^Z
00:03:20: %SYS-5-CONFIG_I: Configured from console by console
Router#show version
Cisco Internetwork Operating System Software
IOS (tm) C2600 Software (C2600-IS-M), Version 12.0(7)T, RELEASE SOFTWARE (fc2)
Copyright (c) 1986-1999 by cisco Systems, Inc.
Compiled Tue 07-Dec-99 02:21 by phanguye
Image text-base: 0x80008088, data-base: 0x80C524F8
ROM: System Bootstrap, Version 11.3(2)XA4, RELEASE SOFTWARE (fc1)
Router uptime is 3 minutes
System returned to ROM by abort at PC 0x802D0B60
System image file is "flash:c2600-is-mz.120-7.T"
cisco 2611 (MPC860) processor (revision 0x202)
with 26624K/6144K bytes of memory.
Processor board ID JAB031202NK (3878188963)
M860 processor: part number 0, mask 49
Bridging software.
X.25 software, Version 3.0.0.
Basic Rate ISDN software, Version 1.1.
2 Ethernet/IEEE 802.3 interface(s)
2 Serial(sync/async) network interface(s)
1 ISDN Basic Rate interface(s)
32K bytes of non-volatile configuration memory.
8192K bytes of processor board System flash partition 1 (Read/Write)
8192K bytes of processor board System flash partition 2 (Read/Write)
Configuration register is 0x2142 (will be 0x2102 at next reload)
Router#










Monday, 1 August 2011

DHCP-Dynamic Host Configuration Protocol

      Dhcp, its Dynamics host configuration Protocol. It is a protocol that gives ip address to host which are connected via network or LAN from the given pool.in Microsoft windows server based operating system is really good, it has advantage to configure DHCP & DNC & Active directory.
      In window server Os we can configure as dhcp server to performing some basic steps & giving our network ipp range.

Windows Server Active Directory Basics

Active Directory is the directory . Active Directory stores All information & it's Common Directory of Network which store All user & Admin Data & use it. Active Directory uses a structured data store as the basis for a logical, hierarchical organization of directory information.

Directory data is stored in the Ntds.dit file on the domain controller. It is recommended that this file is stored on an NTFS partition .for more visit Microsoft official site.
see  Here , Active Directory Configuration Steps :- Microsoft in Windows 2003


Routing-Igrp

Routing-Eigrp

Dynamic Routing-Rip





Vtp

VLAN Trunking Protocol (VTP) is a Cisco proprietary protocol , Virtual Local Area Networks (VLAN) on the whole local area network. To do this, VTP carries VLAN information to all the switches in a VTP  advertisements sent over ISL, 802.1q, IEEE 802.10 and LANE trunks. VTP is Exist  on most domain of the Cisco Catalyst Family products.

Routing

In Internet Enviornment the word 'Routing' means, To Transfer Data from One side to Another side it's it's done by Layer Three device Router.

  Types of Routing

1.Default Routing
2.Static Routing
3.Dynamic Routing




router is a device that decides where to send a data packet in order to get it one step closer to its destination, and then sends it there.

In order to make this decision, the router looks at the destination address on the packet and then consults a list of rules programmed into the router by the person who set it up.

If there is no explicit rule covering this packet - if the router hasn't been programmed with a rule on how to route packets to this particular destination - then the router send the packet to the default route.

In other words, the default route is the destination that a packet is sent to if the router doesn't have instructions to send it somewhere else.

As an example, consider a simple home router that connects your home network to the Internet. This router will have two routing rules - one for computers on your internal network, and a default route. The default route will send packets upstream to your ISP. So any packet that's not going to another computer at your house will always be sent out to the Internet
ip route 0.0.0.0 0.0.0.0 serial 0/0


Static Route:
